What is 1100 Aluminum checkered plate?
Specifications of 1100 Aluminum Checkered Plate
| Alloy |
1100 (Commercially pure aluminum, ≥99% Al content) |
| Temper |
O, H12, H14, H16, H18, H22, H24, H26 |
| Thickness |
0.8 – 10 mm (other ranges 0.15 – 6.0 mm available) |
| Width |
20 – 1850 mm (common: 1000 mm, 1200 mm, 1220 mm) |
| Length |
500 – 11,000 mm (custom length up to 16,000 mm) |
| Surface Finish |
Mill finish, Bright finish, Polished, Embossed, Hair line, Sand blast |
| Pattern Type |
Diamond (1-bar), 2-bar, 3-bar, 5-bar |
| Standards |
ASTM B209, EN 1386, GB/T, JIS, ASME SB209, AMS 4001/4003, QQ-A-250/1 |
| Applications |
Anti-slip flooring, stair treads, decorative wall panels, protective cladding, ramps, vehicle flooring, refrigeration equipment, chemical storage, and architectural use |
Stock list of 1100 Aluminum Checkered Plate
| Temper |
Thickness |
Width |
Length / Size Options |
| O |
0.012″ (0.3 mm) |
1250 × 2500 mm |
also 4 × 8 ft, 5 × 10 ft |
| 0.016″ (0.41 mm) |
1250 × 2500 mm |
4 × 8 ft, 5 × 10 ft |
| 0.02″ (0.51 mm) |
1250 × 2500 mm |
4 × 8 ft, 5 × 10 ft |
| H14 |
0.02″ (0.5 mm) |
1250 × 2500 mm |
1500 × 3000 mm |
| 0.032″ (0.8 mm) |
1250 × 2500 mm |
1500 × 3000 mm |
| 0.04″ (1.0 mm) |
1250 × 2500 mm |
1500 × 3000 mm |
| H18 |
0.04″ (1.0 mm) |
1250 × 2500 mm |
— |
| 0.05″ (1.2 mm) |
1250 × 2500 mm |
— |
| 0.06″ (1.5–1.6 mm) |
1250 × 2500 mm |
— |
| 0.08″ (2.0 mm) |
1250 × 2500 mm |
— |
| 0.10″ (2.5 mm) |
1250 × 2500 mm |
— |
| 0.125″ (3.0 mm) |
1250 × 2500 mm |
— |
| 2.36 mm (2.36″?) |
1500 × 3000 mm |
— |
| … up to ~3.94 mm |
1250 or 1500 × 2500/3000 mm |
– |
| H19 |
0.078″ – 0.15″ |
48″ (≈ 1219 mm) |
– |
👉If the standard specifications listed above do not meet your requirements, you can contact us directly to obtain customized product information. Quick Quote.
Mechanical Properties of 1100 Aluminum Checkered Plate
| Property |
Typical Value / Range |
| Tensile Strength (Ultimate) |
90 – 130 MPa (O temper) 110 – 145 MPa (H14 temper) |
| Yield Strength (0.2% offset) |
20 – 35 MPa (O temper) 95 MPa (H14 temper, typical) |
| Elongation at Break |
25 – 35% (O temper) 4 – 10% (H14 temper) |
| Brinell Hardness (HB) |
20 – 35 HB (depending on temper) |
| Shear Strength |
~69 MPa |
| Elastic Modulus (E) |
~69 GPa |
| Poisson’s Ratio |
0.33 |
| Density |
2.71 g/cm³ |
| Melting Point |
643 – 657 °C |
| Thermal Conductivity |
~222 W/m·K |
| Electrical Conductivity |
~61% IACS |
What are1100 Aluminum Checkered Plates used for?
What are the characteristics of 1100 Aluminum Checkered Plate?
1100 Aluminum Checkered Plate is a commercially pure aluminum tread plate known for its lightweight, durability, and anti-slip surface. Its key characteristics include:
-
High aluminum content (≥99%) – offers excellent corrosion resistance in most environments, including chemical and marine atmospheres.
-
Non-heat-treatable alloy – strength is relatively low but can be improved through cold working (tempers such as H14, H18).
-
Good formability and weldability – easy to bend, cut, and join, making it suitable for complex fabrication.
-
Excellent thermal and electrical conductivity – useful in applications requiring efficient heat and electricity transfer.
-
Raised checkered patterns (diamond, 2-bar, 3-bar, 5-bar) – provide superior slip resistance and enhance decorative appeal.
-
Wide size range – thickness from 0.8–10 mm, widths up to 1850 mm, and lengths up to 11,000 mm, customizable for various needs.
-
Multiple surface finishes – mill finish, bright finish, polished, and embossed, offering both functional and aesthetic options.
-
Compliance with international standards – including ASTM B209, EN, GB/T, and JIS.
Overall, 1100 aluminum checkered plate combines corrosion resistance, slip resistance, and good workability, making it a versatile choice for flooring, cladding, and decorative applications.
What Pattern can ZGGDMetal provide?
ZGGDMetal can provide 1100 Aluminum Checkered Plate in a variety of raised patterns to meet different functional and decorative needs. The available patterns include:
-

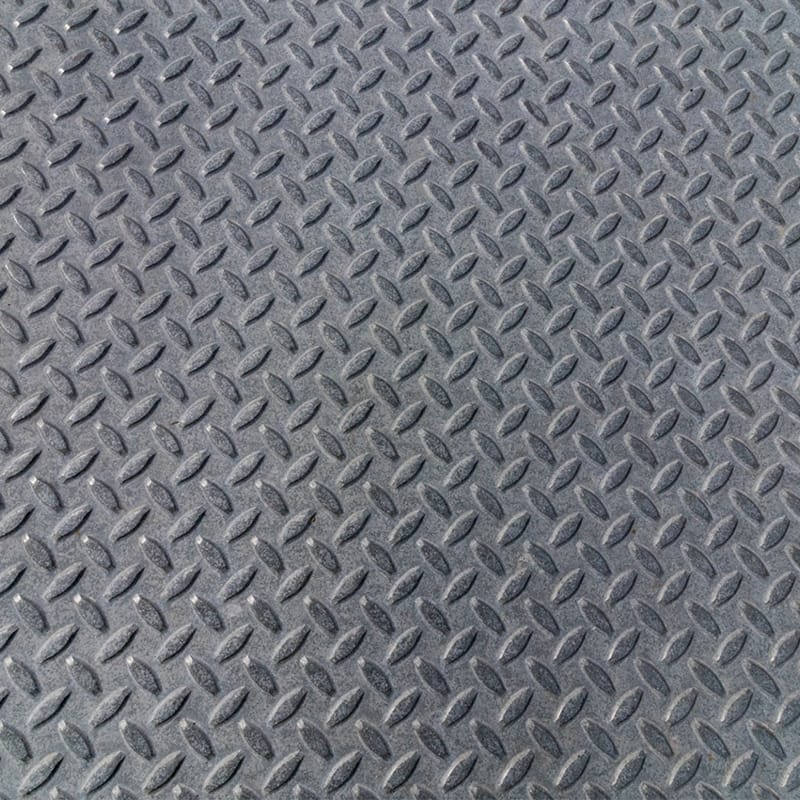

Diamond (1-bar) pattern – the most common type, offering both slip resistance and an attractive appearance.
-
2-bar pattern – suitable for light-duty anti-slip flooring and wall protection.
-
3-bar pattern – provides enhanced grip and is often used in industrial walkways.
-

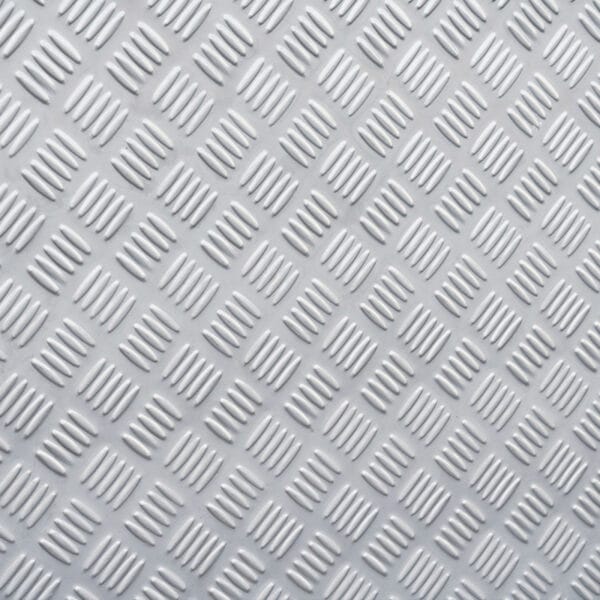

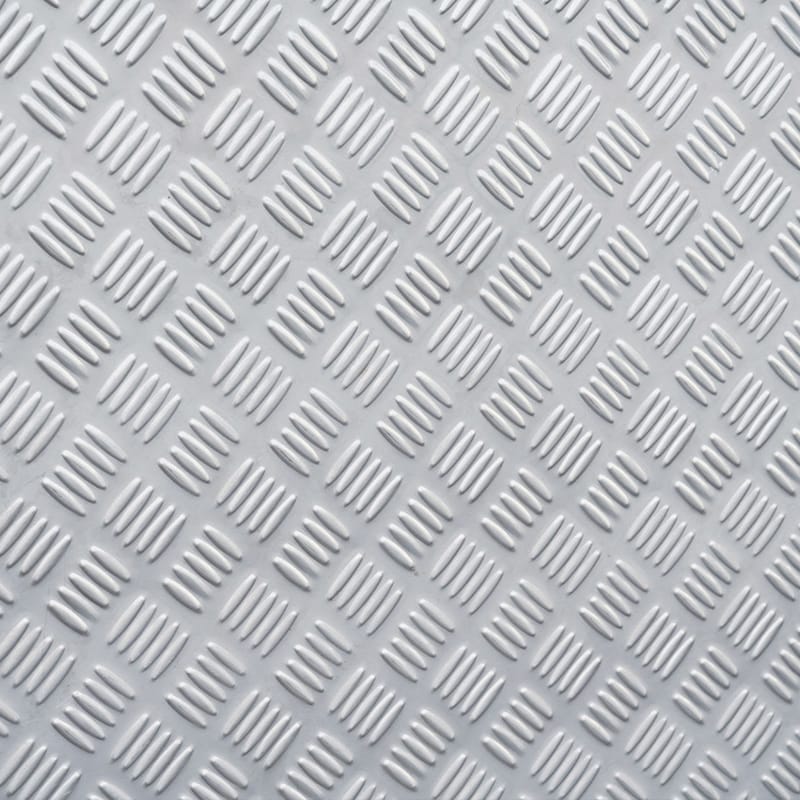

5-bar pattern – the most widely used anti-slip surface, ideal for flooring, stair treads, vehicle decks, and ramps.
With these pattern options, ZGGDMetal can supply aluminum checkered plates tailored for flooring, cladding, decoration, and safety applications across construction, transportation, and industrial fields.
