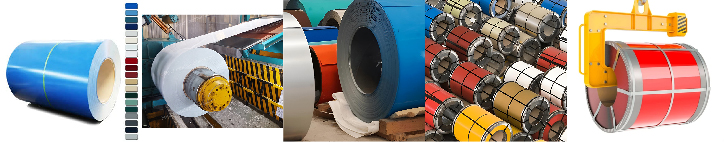

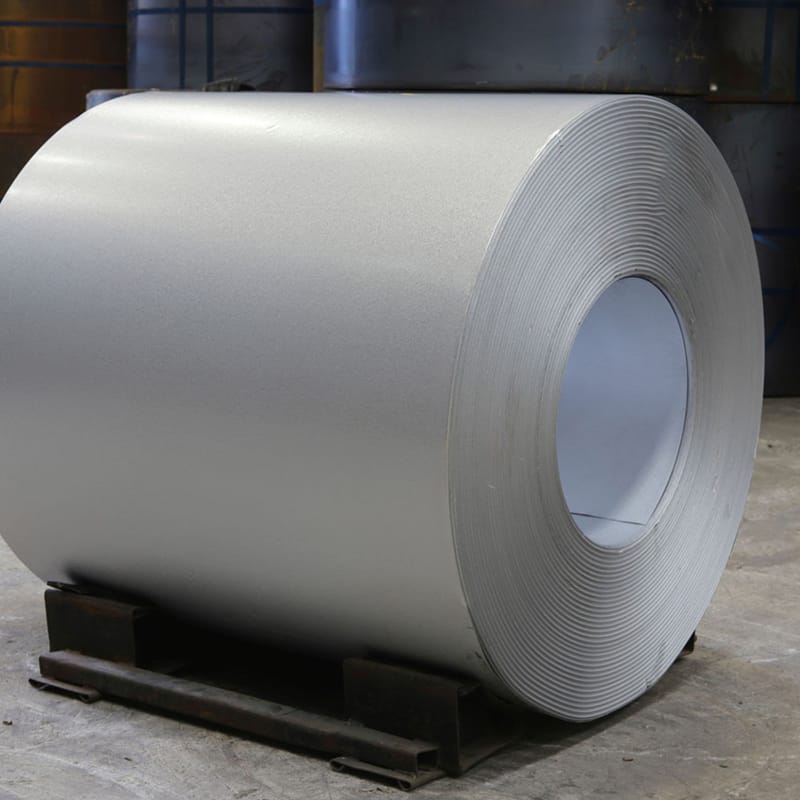

PE Colour Coated Aluminium Coil is a high-quality aluminum coil coated with a durable polyester (PE) paint layer, combining the lightweight strength and corrosion resistance of aluminum with vibrant, long-lasting color. The PE coating offers excellent weather resistance, high gloss retention, and easy maintenance, making it ideal for both interior and exterior applications.
| Alloy | 1100, 3003, 5005 |
| Temper | O (soft), H14, H24 |
| Thickness | 0.2 – 0.7 mm |
| Width | 1000 – 1500 mm (can be slit to 600 – 1200 mm) |
| Length | Customizable, typically supplied as coils |
| Coating Thickness | 15 – 25 μm (PE topcoat) |
| Coating Hardness | Medium hardness, resistant to scratches and minor impact |
| Weather Resistance | Excellent, suitable for exterior applications |
| Surface Treatment | Pre-treatment (chromate or non-chromate) + primer + PE topcoat |
| Color | Wide range of colors, customizable, smooth, matte, or textured finishes |
| Standard | ASTM B209, GB/T 3190, EN 485, EN 1396 |
| Applications | Roofing sheets, wall cladding, facades, ceiling panels, doors, windows, signage, home appliances |
| Coating Type | Thickness | Width | Coil ID (mm) | Alloy | Temper |
|---|---|---|---|---|---|
| PE | 0.2 mm | 30 mm | 508 | 1050 | O |
| PE | 0.2 mm | 50 mm | 610 | 1050 | O |
| PE | 0.2 mm | 100 mm | 508 | 1050 | O |
| PE | 0.2 mm | 150 mm | 610 | 1050 | O |
| PE | 0.2 mm | 200 mm | 508 | 1050 | O |
| PE | 0.2 mm | 250 mm | 610 | 1050 | O |
| PE | 0.2 mm | 300 mm | 508 | 1050 | O |
| PE | 0.2 mm | 350 mm | 610 | 1050 | O |
| PE | 0.2 mm | 400 mm | 508 | 1050 | O |
| PE | 0.2 mm | 450 mm | 610 | 1050 | O |
| Property | 1050 Alloy (O Temper) |
|---|---|
| Tensile Strength (Rm) | 60 – 95MPa |
| Yield Strength (Rp0.2) | 25 – 45MPa |
| Elongation (A50) | ≥ 35% |
| Hardness (Brinell) | 20 – 30HB |
| Density | 2.70g/cm³ |
| Modulus of Elasticity | 69GPa |
| Poisson’s Ratio | 0.33 |

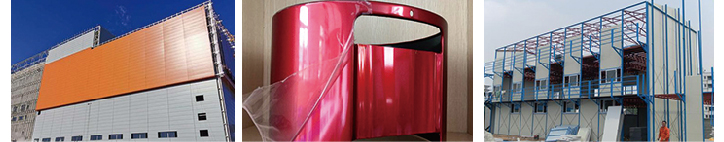

PE Colour Coated Aluminium Coil is widely used in both exterior and interior applications due to its durability, lightweight, and aesthetic appeal. Common uses include:
Roofing sheets and wall cladding for residential, commercial, and industrial buildings
Facade panels and ceiling panels for decorative architectural projects
Doors and window frames
Signage and advertising boards
Home appliances and other interior decorative elements
Its corrosion resistance, weather durability, and customizable colors make it ideal for applications that require both functionality and visual appeal.
What are the characteristics of PE Colour coated aluminium coil?E Colour Coated Aluminium Coil has the following key characteristics:
Lightweight and strong: Combines the low weight of aluminum with good structural strength.
Corrosion resistant: The PE coating and pre-treatment protect against rust and environmental damage.
Durable and weather-resistant: Maintains color and gloss under sunlight, rain, and varying temperatures.
Aesthetic and customizable: Available in a wide range of colors, finishes (smooth, matte, or textured), and patterns.
Easy to process: Can be cut, bent, and formed to suit roofing, cladding, facades, and decorative applications.
Eco-friendly and recyclable: Aluminum is fully recyclable without losing properties.
Surface protection: Pre-treatment plus primer and PE topcoat ensure long-lasting adhesion and scratch resistance.
These features make it ideal for architectural, construction, and interior decoration applications.
ZGGDMETAL is a professional manufacturer and exporter of high-quality aluminium products, including PE Colour Coated Aluminium Coils. Here’s why customers choose us:
High-Quality Materials: We use premium aluminum alloys and durable PE coatings to ensure long-lasting performance and excellent corrosion resistance.
Wide Product Range: Our coils are available in various alloys, thicknesses, widths, colors, and finishes to meet diverse project requirements.
Customizable Solutions: We offer flexible coil sizes, temper options, and surface finishes tailored to your specific applications.
Strict Quality Control: All products comply with international standards such as ASTM, GB/T, and EN, ensuring consistent quality and reliability.
Experienced Team: With years of experience in aluminum production and export, we provide professional guidance, fast responses, and reliable support.
Efficient Delivery: Large stock availability and streamlined logistics allow us to meet both small and bulk orders promptly.
Eco-Friendly and Sustainable: Our products are fully recyclable, reflecting our commitment to environmentally responsible manufacturing.
Choosing ZGGDMETAL ensures you get high-quality, durable, and aesthetically versatile PE Colour Coated Aluminium Coils for roofing, cladding, facades, and other applications.
