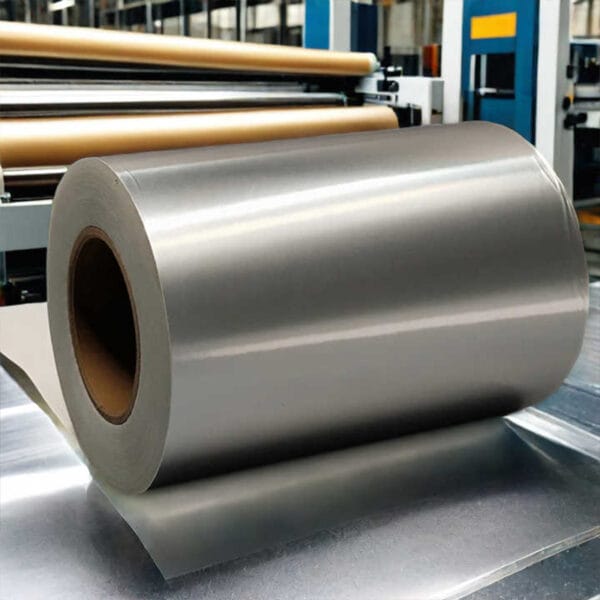

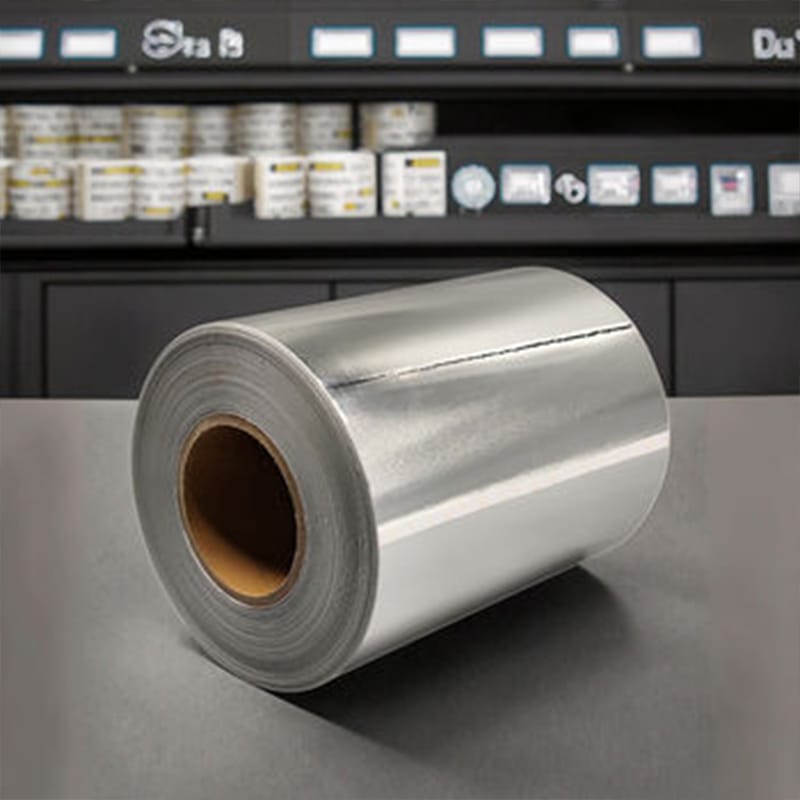

What is Single sided smooth aluminum foil？

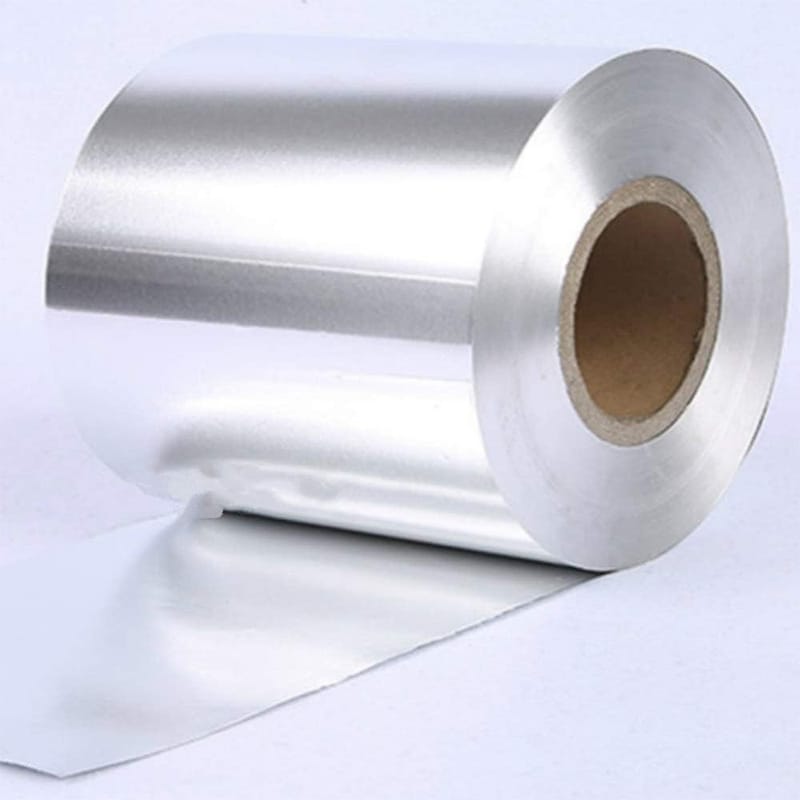

Single sided smooth aluminum foil is a type of aluminum foil with one surface bright and smooth, and the other side matte. It is produced by double-rolling two layers of foil together and then separating them, resulting in the outer side being glossy and the inner side dull. Commonly made from alloys like 1235, 8011, or 8021, it offers good barrier performance, corrosion resistance, and formability. Thickness usually ranges from 6 µm to 0.2 mm, with widths from 100 mm to 1700 mm, available in tempers such as O (soft) or H18 (hard). The bright side provides reflectivity and visual appeal, while the matte side is better for printing, coating, or lamination. It is widely used in packaging, insulation, labeling, and various industrial applications, often produced in compliance with EN 546 or similar standards.Learn about Double-sided smooth aluminum foil
Advantages of ZGGDMETAL Single sided smooth aluminum foil
-
Mirror-Like Smooth Side for High Reflectivity
-
Excellent Barrier to Moisture, Light, Air & Odor
-
Good Heat and Electrical Conductivity
-
Flexible, Foldable, and Easy to Laminate
-
Food Safe, Non-toxic, Recyclable
Specifications of ZGGDMETAL Single sided smooth aluminum foil
| Alloy Grade |
1235, 8011, 8021、8079 |
| Thickness Range |
6 µm (0.006 mm) – 0.2 mm |
| Household Thickness |
~16 µm (standard), ~24 µm (heavy duty) |
| Width Range |
100 mm – 1700 mm |
| Temper (State) |
O (Soft), H14, H16, H18, H19, H22 |
| Surface Finish |
Single-sided bright (smooth) + matte; optional polishing, coating, embossing, or printing |
| Standards |
EN 546, GB/T 3198, ASTM B479 |
| Shape |

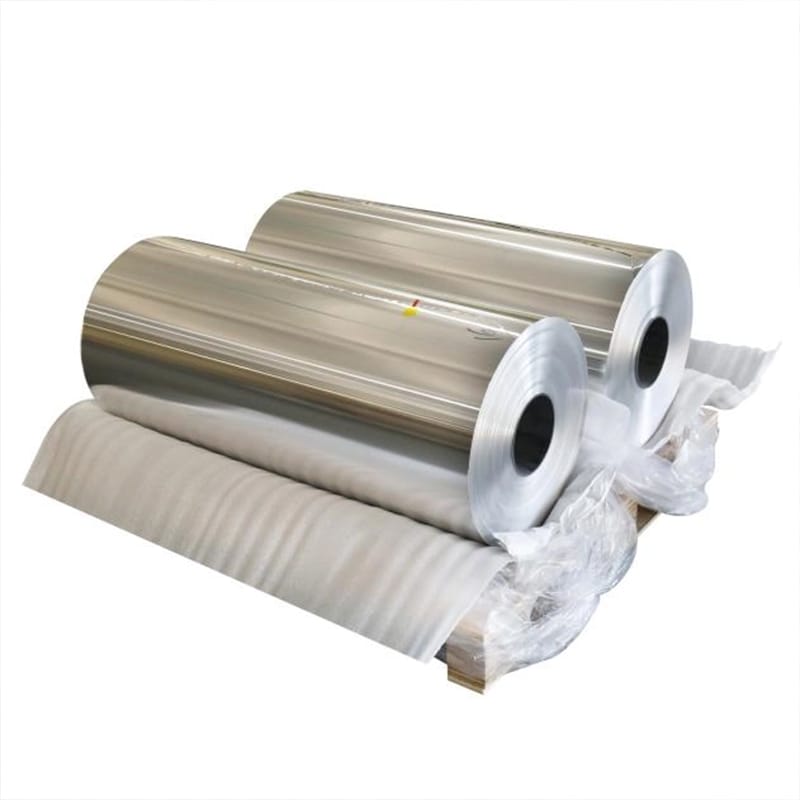

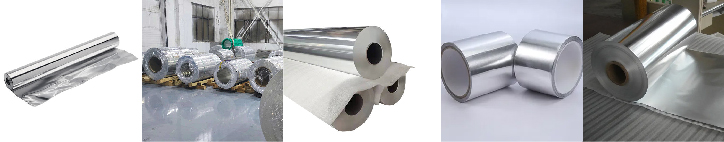

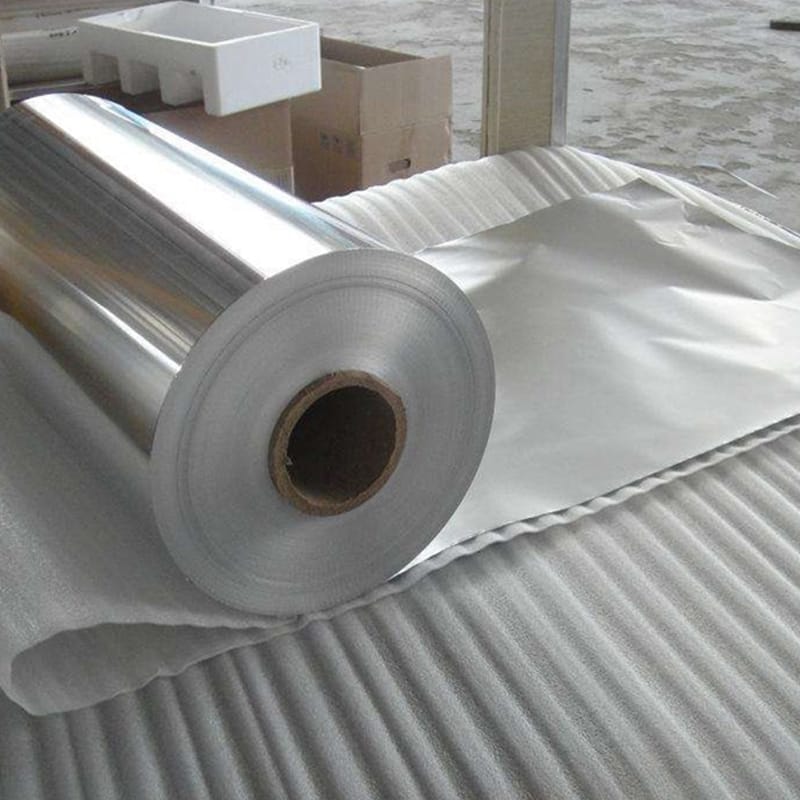

Rolls (jumbo rolls, small rolls) |
| Payment Terms |
T/T, L/C, Western Union, PayPal |
| Applications |

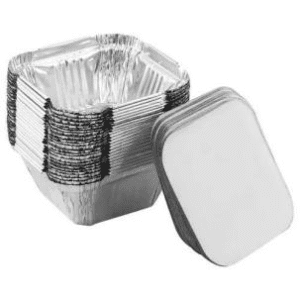

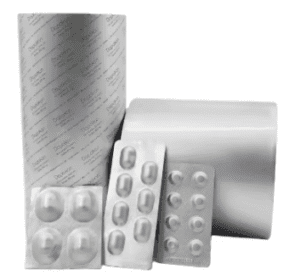

Food packaging, pharmaceutical blister packs, thermal insulation, labels, cable shielding, decorative wrapping, battery materials |
In-Stock Inventory Table: Single-Sided Smooth Aluminum Foil
| Width (mm) |
Thickness (µm / mm) |
Approx. Length / Roll Weight |
| 180 mm |
16 µm (0.016 mm) |
5 kg rolls |
| 200 mm |
20 µm (0.020 mm) |
1–2 kg rolls |
| 200 mm |
18 µm (0.018 mm) |
2 kg rolls (currently out of stock) |
| 200 mm |
16 µm (0.016 mm) |
2 kg rolls |
| 200 mm |
14 µm (0.014 mm) |
2 kg rolls |
| 200 mm |
12 µm (0.012 mm) |
2 kg rolls |
| 200 mm |
10 µm (0.010 mm) |
2 kg rolls (currently out of stock) |
| — |
≤ 25 µm (single-side bright typical max) |
— |
👉If you need to purchase or customize specifications, you can contact us directly. Quick Quote.
ZGGDMETAL Aluminum foil Chemical Composition
| Alloy |
Al (%) |
Si (%) |
Fe (%) |
Cu (%) |
Mn (%) |
Mg (%) |
Zn (%) |
Others (%) |
| 1235 |
≥ 99.35 |
≤ 0.10 |
≤ 0.60 |
≤ 0.05 |
≤ 0.05 |
≤ 0.05 |
≤ 0.10 |
≤ 0.15 |
| 8011 |
97.3–98.9 |
0.50–0.90 |
0.60–1.0 |
≤ 0.10 |
≤ 0.20 |
≤ 0.05 |
≤ 0.10 |
≤ 0.15 |
| 8021 |
≥ 98.5 |
≤ 0.20 |
0.60–1.0 |
≤ 0.05 |
≤ 0.10 |
≤ 0.05 |
≤ 0.10 |
≤ 0.15 |
ZGGDMETAL Aluminum foil Mechanical Properties
| Alloy |
Temper |
Tensile Strength (MPa) |
Elongation (%) |
Yield Strength (MPa) |
Hardness (HV) |
| 1235 |
O |
40–100 |
≥ 1.0–10 |
— |
15–30 |
| 1235 |
H18 |
135–165 |
≤ 3 |
≥ 120 |
35–45 |
| 8011 |
O |
60–110 |
≥ 1.0–12 |
— |
20–35 |
| 8011 |
H18 |
150–185 |
≤ 3 |
≥ 135 |
40–50 |
| 8021 |
O |
60–120 |
≥ 1.0–10 |
— |
20–35 |
| 8021 |
H18 |
150–180 |
≤ 3 |
≥ 135 |
40–50 |
What are Single sided smooth aluminum foil foils used for?
What are the characteristics of Single sided smooth aluminum foil?
Single sided smooth aluminum foil has several key characteristics:
-
One bright, smooth surface and one matte side – achieved through double-rolling and separation, giving distinct functional and visual properties.
-
Excellent barrier performance – effectively blocks moisture, light, oxygen, and odors, making it ideal for packaging.
-
Lightweight yet strong – thin (typically 6 µm to 0.2 mm) but with good tensile strength, especially in hardened tempers like H18.
-
Good formability – can be easily folded, wrapped, or laminated without cracking, especially in soft temper (O).
-
Corrosion resistance – stable in most environments and suitable for food-contact applications.
-
High reflectivity – bright side reflects heat and light, useful for insulation and decorative purposes.
-
Surface adaptability – matte side offers better adhesion for printing, coating, or lamination; surface can also be polished, coated, or embossed.
-
Available in various alloys and tempers – such as 1235, 8011, or 8021 in O, H14, H18, etc., to meet different performance needs.
-
Manufactured to precise standards – with tight thickness tolerances and controlled pinhole levels, often per EN 546 or GB/T 3198.
Why choose ZGGDMETAL as your 8011 aluminum foil supplier?

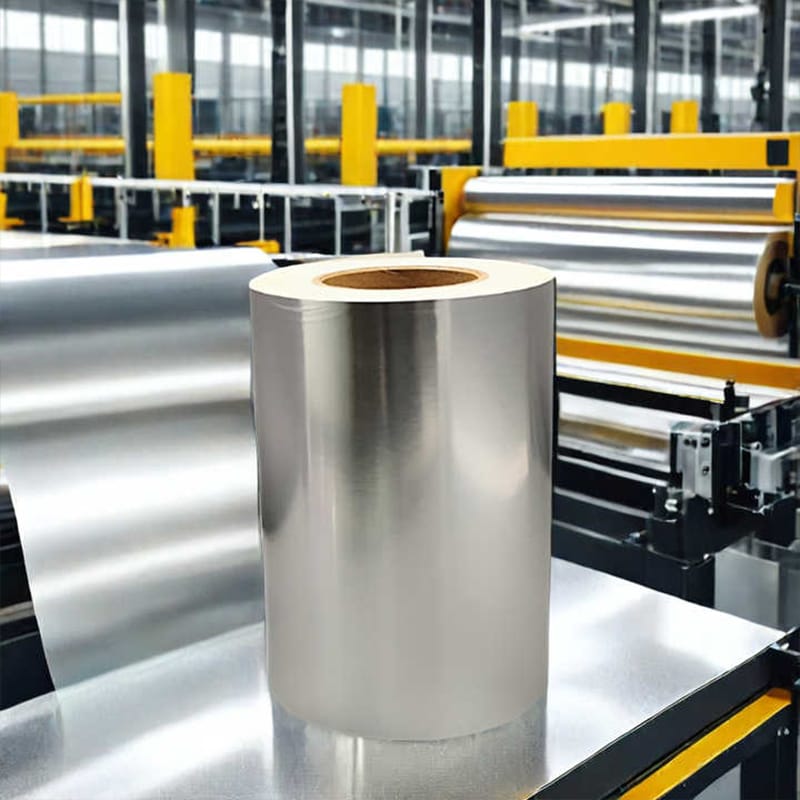

ZGGDMETAL delivers consistent quality and reliability backed by years of export experience. We have built long-term partnerships in 50+ countries, proving our ability to meet diverse market requirements. Our production facilities are equipped with advanced rolling mills and annealing furnaces, ensuring uniform thickness, smooth surfaces, and excellent mechanical properties.
With precision slitting technology achieving tolerances as tight as ±0.01 mm, we guarantee dimensional accuracy for demanding applications. Our strict quality control system monitors every stage—from raw material inspection to final coil packaging—so each roll meets international standards.
We also provide customized packaging solutions to match export regulations or retail presentation needs, protecting your products during transit while enhancing their market appeal. Choosing ZGGDMETAL means securing a supplier committed to performance, precision, and customer satisfaction.
