7075 aluminum tube is a high-strength cold-processed aluminum alloy, widely used in aerospace, mold processing and mechanical equipment. Because the metal strength exceeds that of low-carbon steel, it has excellent machinability, corrosion resistance and excellent anodizing performance. The fine grain structure effectively improves deep hole drilling, thread forming and wear resistance, making 7075 aluminum alloy an ideal material for manufacturing high-precision and high-strength components.
7075 aluminum tube is a cold-worked, high-strength forged alloy that significantly outperforms mild steel in strength. Recognized as one of the strongest commercial-grade aluminum alloys, 7075 aluminum alloy offers excellent mechanical properties, good anodizing response, and moderate corrosion resistance. Its fine-grain structure enhances deep drilling performance, increases tool wear resistance, and improves thread rolling consistency.
With a yield strength close to its tensile strength, 7075 has a high yield ratio and exceptional strength-to-weight ratio. However, due to its relatively lower plasticity and thermal strength, it is best suited for load-bearing structural components used at room temperature or below 120°C.Widely used in aerospace, military, racing, and high-performance engineering, 7075 aluminum has become one of the most critical structural materials in the aerospace industry.
👉 If you need to purchase in bulk or customize, ZGGDMETAL aluminum alloy tubes are equipped with molds, and there is no need to pay extra mold fees. For details, please refer to the 7075 aluminum tube specifications.
| GRADE | 7075 |
| TEMPER | T6,T9 |
| TYPE | Seamless,Extruded |
| OD | 0.236″ – 7.874″（6 mm – 200 mm） |
| WALL THICKNESS | 0.039″– 0.787″（1 mm – 20 mm） |
| LENGTH | 6 meters (customizable length) |
| EQUIVALENT NAME | AA 7075、UNS A97075、A97075、AlZn5.5MgCu、EN AW‑7075(👉Click for details) |
| EXTRUDED ALUMINUM ROUND TUBE | OD:0.393″–9.843″ (10–250 mm) |
| COLD DRAWN ALUMINUM ROUND TUBE | OD:0.5″–3″(12.7–76 mm) |
| SEAMLESS ALUMINUM ROUND TUBE | OD:0.393″–9.843″ (10–250 mm) |
| SURFACE TREATMENT | Anodizing, sandblasting, electrophoresis, polishing |
| PROCESSING SERVICES | Cutting, bending, punching, CNC, deep hole drilling, thread rolling |
| PACKAGE | Standard Packaging |
| STANDARD | ASTM B210,AMS‑WW‑T‑700/7（/7A）,ASTM B241 ,ASTM B221 ,AMS‑QQ‑A‑200/11 ,EN 754‑5 / EN 755‑9 ,EN 754‑5 / EN 755‑9 ,JIS H4080 ( Click for details) |
| Si | ≤0.4% |
| Mg | 2.1~2.9% |
| Fe | ≤ 0.5% |
| Mn | ≤ 0.3% |
| Cr | 0.18~0.28% |
| Cu | 1.2~2% |
| Ti | ≤ 0.2% |
| Zn | 5.1~6.1% |
| AL | Balance |
| Country/Region | Standard | Designation |
|---|---|---|
| China | GB | 7075 |
| United States | ASTM | 7075 |
| UNS | A97075 | |
| International | ISO | AlZn5.5MgCu / A97075 |
| Germany | DIN | AlZnMgCu1.5 |
| W-Nr. | 3.4365 | |
| Europe | EN | EN-AW-AlZn5.5MgCu |
| Numeric Designation | A97075 | |
| Australia | AS | 7075 |
| Production | Standard | Applicable to | Description |
|---|---|---|---|
| Cold Drawn Seamless Tube | ASTM B210 | Drawn seamless aluminum tubes | Widely used with AMS‑WW‑T‑700/7 for aerospace |
| AMS‑WW‑T‑700/7 (or /7A) | 7075 cold drawn seamless tubes | Aerospace-grade tubing standard (MIL Spec) | |
| Extruded Tube | ASTM B241 | Extruded aluminum tubes | Covers 7075 extruded round tubing |
| ASTM B221 | Extruded bars, rods, profiles, and tubes | Applicable to general 7075 extrusions | |
| AMS‑QQ‑A‑200/11 | 7075 extruded aluminum tube | Former Federal Specification (now SAE) | |
| European Standards | EN 754‑5 / EN 755‑9 | Extruded / cold drawn aluminum tubes | Common EU standards for 7075 tubes |
| EN 754‑1 | Precision cold drawn aluminum tubes | Tolerance and mechanical properties defined | |
| Japanese Standard | JIS H4080 | Extruded and drawn aluminum tubes | Japanese Industrial Standard for 7075 tubing |
| Tensile Strength | ≥524 MPa |
| Yield Strength | ≥ 455 MPa |
| Elongation | ≥ 11% |
| Description | OD (in / mm) | Wall (mm) | ID (in / mm) |
|---|---|---|---|
| 7075 T6 EXTRUDED ALUMINUM ROUND TUBE | 1″ / 25.4 mm | 3 mm | 0.882″ / 22.4 mm |
| 7075 T6 EXTRUDED ALUMINUM ROUND TUBE | 3″ / 76.2 mm | 5 mm | 2.803″ / 71.2 mm |
| 7075 T6 EXTRUDED ALUMINUM ROUND TUBE | 4″ / 101.6 mm | 10 mm | 3.606″ / 91.6 mm |
| 7075 T6 EXTRUDED ALUMINUM ROUND TUBE | 5″ / 127 mm | 20 mm | 3.425″ / 87 mm |
| 7075 T9 EXTRUDED ALUMINUM ROUND TUBE | 6″ / 152.4 mm | 30 mm | 4.063″ / 103 mm |
| 7075 T6 COLD DRAWN ALUMINUM ROUND TUBE | 0.5″ / 12.7 mm | 0.035″ / 0.9 mm | 11.8 mm |
| 7075 T6 COLD DRAWN ALUMINUM ROUND TUBE | 1.0″/25.4 mm | 0.065″/ 1.65 mm | 22.1mm |
| 7075 T6 COLD DRAWN ALUMINUM ROUND TUBE | 2.0″/50.8 mm | 0.125”/ 3.2 mm | 44.4 mm |
| 7075 T6 COLD DRAWN ALUMINUM ROUND TUBE | 3.0″/76.2 mm | 0.25″/6.3 mm | 63.6 mm |
| 7075 ALUMINUM SQUARE TUBE | 12.7×12.7 mm | 0.125″/3.2 mm | 6.3mm |
| 7075 ALUMINUM SQUARE TUBE | 1″x1″/25.4×25.4mm | 0.125″ / 3.2 mm | 19 mm |
| 7075 ALUMINUM SQUARE TUBE | 2″x2″/50.8×50.8mm | 0.188″/4.8 mm | 41.2 mm |

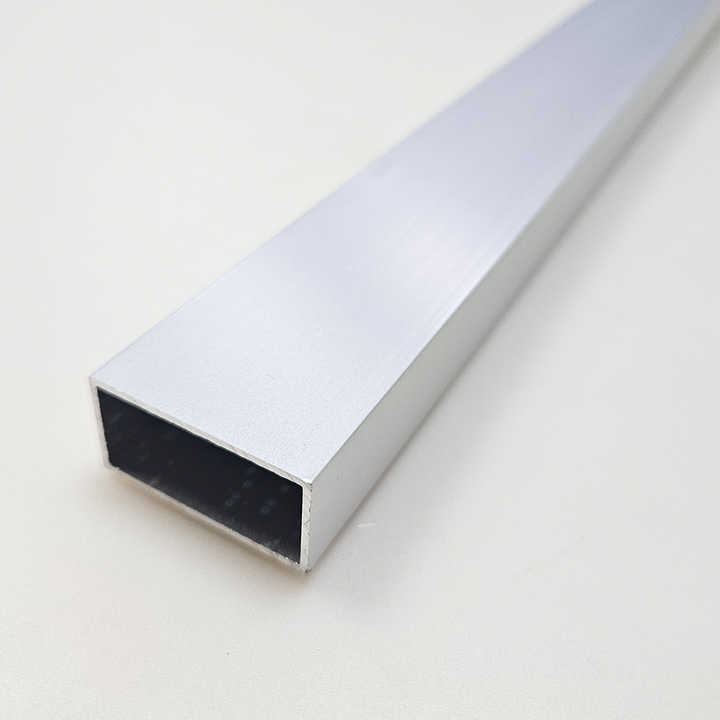

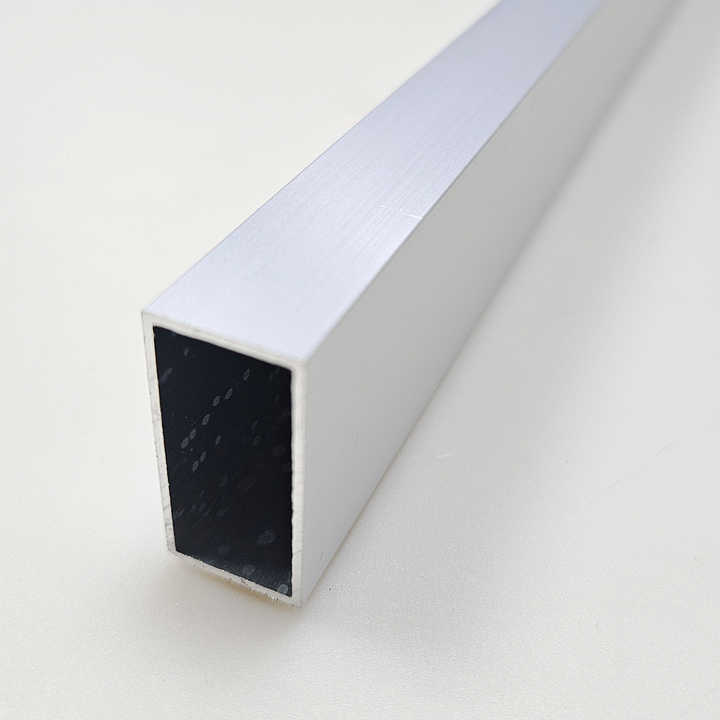

| 7075 ALUMINUM RECTANGULAR TUBE | 30×15 mm | 1.5 mm | 27×12 mm |
| 7075 ALUMINUM RECTANGULAR TUBE | 50×25 mm | 2 mm | 46×21 mm |
| 7075 ALUMINUM RECTANGULAR TUBE | 100×50 mm | 4 mm | 92×42 mm |
