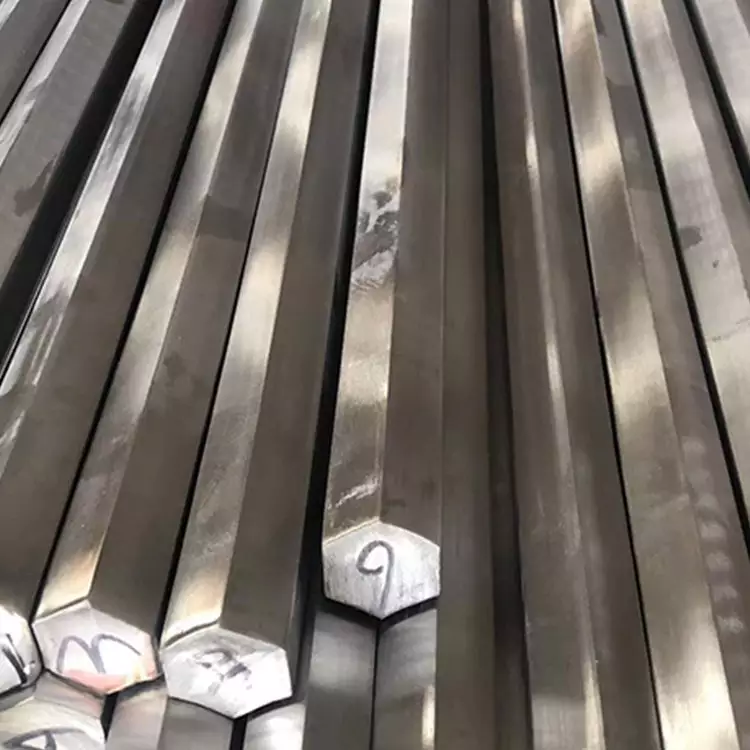

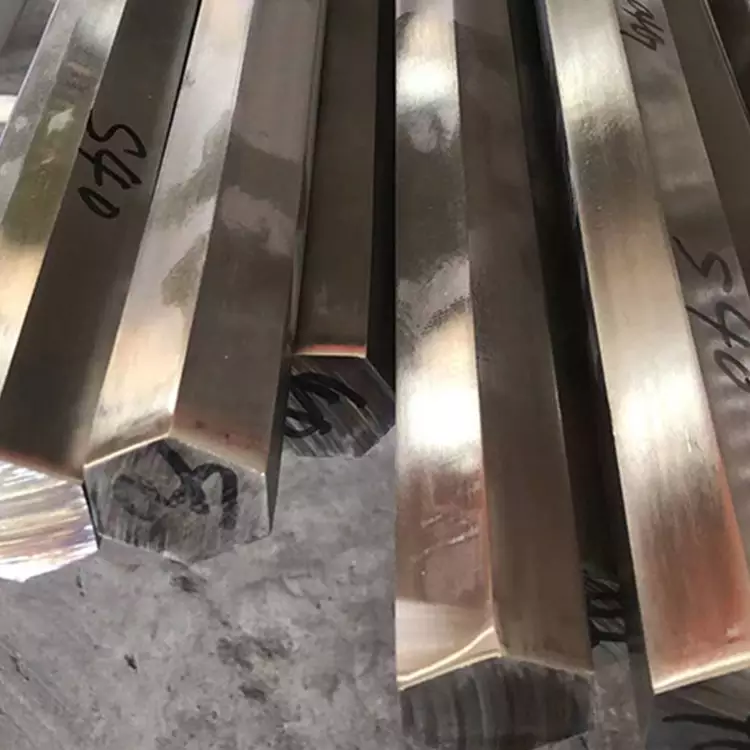

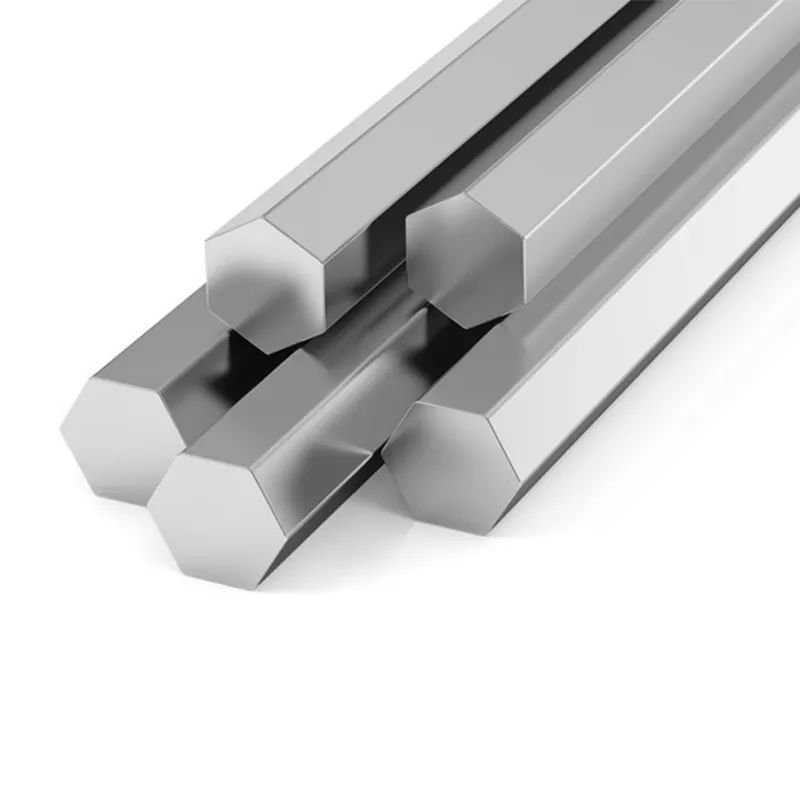

Aluminum Hex Bar

Aluminum hexagon bars are solid extruded aluminum profiles with a six-sided cross-section, widely used in machinery, structural components, decorative parts, and precision machining. They are available in various alloys, including 1000 series (such as 1050, 1060, 1100) for excellent corrosion resistance and workability, and 6000 series (such as 6061, 6082) for high strength, good machinability, and heat-treatable properties.

Descriptionn

What is aluminum hex bar?

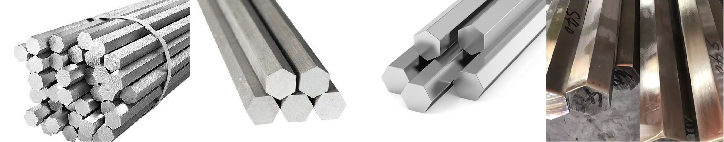

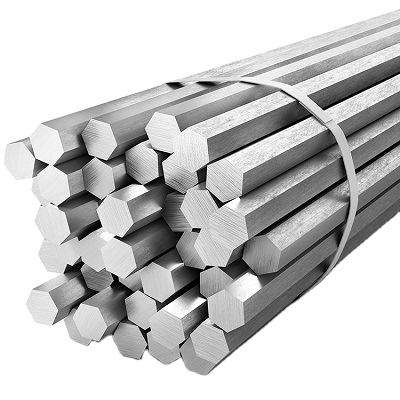

An aluminum hex bar is a solid aluminum profile with a six-sided (hexagonal) cross-section, produced by extrusion. It combines the lightweight, corrosion-resistant, and conductive properties of aluminum with the geometric strength and easy handling of a hex shape. Aluminum hex bars are available in various alloys, such as 1000 series for excellent corrosion resistance and 6000 series like 6061 or 6082 for higher strength and machinability. Commonly supplied in lengths of around 3000 mm and across-flat sizes from about 6 mm to over 50 mm, they can be finished in mill, brushed, polished, or anodized surfaces. These bars meet international standards (EN, ASTM, GB, JIS) and are widely used in machinery, aerospace, automotive, marine, and construction applications. Aluminum Hexagonal Bars

Specifications of Aluminum Hexagonal Bars

Alloy	1050, 1060, 1100 (1000 series); 6061, 6082 (6000 series); 7075
Tempers	O, H12, H24, H111, T4, T6, T651
Across-Flat Size	Approx. 6 mm – 50+ mm (e.g., 5.2, 10, 12.7, 20, 25.4, 35, 50.8 mm)
Length	Standard 3000 mm; custom cut lengths available
Surface Finish	Mill finish, brushed, polished, anodized, coated, embossed
Standards	EN 573-3, EN 754-2, EN 754-6, ASTM, GB, JIS, DIN
Unit Weight (Example)	5.2 mm: 0.0641 kg/m; 10 mm: 0.2372 kg/m; 20 mm: 0.9488 kg/m; 50.8 mm: 6.1213 kg/m
Applications	Machinery parts, aerospace, automotive, marine, construction, decorative elements

👉 If you need to customize or purchase products, please contact the technical team immediately. Quick quote

Stock list of Aluminum Hexagonal Bars

Across-Flat Size (mm)	Across-Flat Size (inch)	Unit Weight (kg/m)	Standard Length (mm)	Common Alloys	Tempers Available
5.2	—	0.0641	3000	1050, 6061	O, T6
6.35	1/4″	~0.090	3000	6061, 6082	T6, T651
10	—	0.2372	3000	1050, 6061	O, T6
12.7	1/2″	0.3826	3000	6061, 6082	T6, T651
19	3/4″	~0.850	3000	6061, 6082	T6, T651
20	—	0.9488	3000	1050, 6061	O, T6
25.4	1″	1.5303	3000	6061, 6082	T6, T651
35	—	2.9057	3000	6061, 6082	T6, T651
50.8	2″	6.1213	3000	6061, 6082	T6, T651

Aluminum Hexagonal bar opposite side dimensions

Opposite side dimensions（mm）	Opposite side dimensions（inch）	Unit weight（kg/m）	Alloy	Temper
5.2	—	0.0641	1050, 6061	O, T6
6.35	1/4″	0.090 (approx.)	6061, 6082	T6, T651
10	—	0.2372	1050, 6061	O, T6
12.7	1/2″	0.3826	6061, 6082	T6, T651
19	3/4″	0.850 (approx.)	6061, 6082	T6, T651
20	—	0.9488	1050, 6061	O, T6
25.4	1″	1.5303	6061, 6082	T6, T651
35	—	2.9057	6061, 6082	T6, T651
50.8	2″	6.1213	6061, 6082	T6, T651

👉 Inventory is updated in real time, please contact the technical team immediately. Quick quote

What standard can ZGGDMETAL provide for aluminum hex bar?

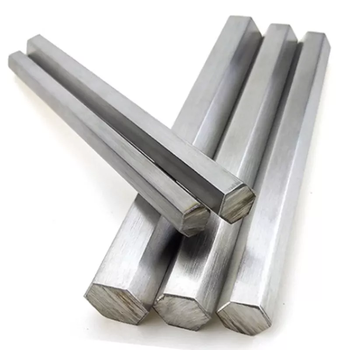

ZGGDMETAL can supply aluminum hex bars in full compliance with international and national standards, including EN 573-3 (chemical composition), EN 754-2 (dimensional tolerances), and EN 754-6 (mechanical properties and manufacturing requirements). We also provide products manufactured to ASTM, GB, JIS, and DIN specifications to meet different regional and industry requirements. This ensures precise dimensions, consistent quality, and reliable performance for global customers. Aluminum Hexagonal Rod

What are aluminum hex bar used for?

Aluminum hex bars are used in a wide range of industries due to their lightweight, corrosion resistance, and ease of machining. They are commonly applied in machinery and equipment manufacturing for shafts, fasteners, and precision components; aerospace and automotive sectors for structural and functional parts; marine engineering for corrosion-resistant fittings; and construction for decorative trims and structural connectors. Their hexagonal shape provides better grip for tooling and assembly, making them ideal for custom bolts, nuts, and mechanical linkages. They are also used in general engineering, electrical components, and DIY fabrication where strength, precision, and durability are required. Aluminum Hex rod

What are the characteristics of aluminum hex bars?

Aluminum hex bars feature a unique six-sided cross-section, offering excellent machinability and ease of handling during assembly. They are lightweight yet strong, with outstanding corrosion resistance, making them suitable for both indoor and outdoor applications. Available in multiple alloys—such as 1000 series for superior corrosion resistance and 6000 series for higher strength and heat-treatable properties—they can be supplied in a wide range of tempers (O, H12, H24, T4, T6, T651) to meet specific mechanical requirements. Common across-flat sizes range from about 6 mm to over 50 mm, with standard lengths around 3000 mm and optional custom cutting. Surface finishes include mill finish, brushed, polished, or anodized for enhanced durability and appearance. Manufactured to standards like EN, ASTM, GB, JIS, and DIN, aluminum hex bars offer precise dimensions, stable quality, and versatility for diverse industrial uses. Aluminum rod

Why choose ZGGDMETAL as your aluminum hex bar supplier?

Choosing ZGGDMETAL as your aluminum hex bar supplier ensures you receive high-quality products backed by professional service and reliable delivery. We source directly from a first-tier aluminum producer and operate with strict quality control, meeting international standards such as EN, ASTM, GB, JIS, and DIN. With over 100 ready extrusion dies and in-house CNC machining capabilities (cutting, milling, drilling, bending, welding, surface finishing), we can meet both standard and customized requirements efficiently. Our competitive pricing, fast delivery within 7 days for most orders, and global export experience guarantee that you get the right products on time, anywhere in the world. ZGGDMETAL is committed to providing consistent quality, technical support, and flexible solutions for your aluminum hex bar needs.
