6082 t6 aluminium tube

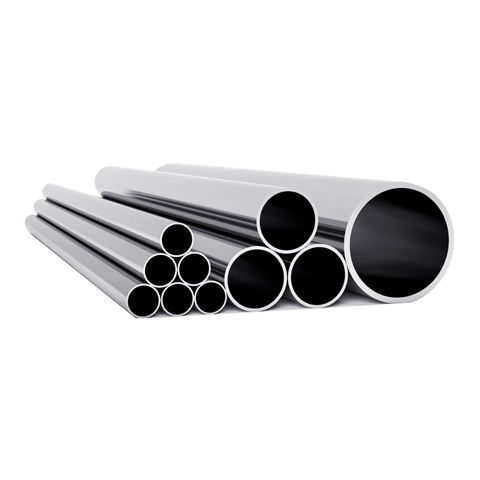

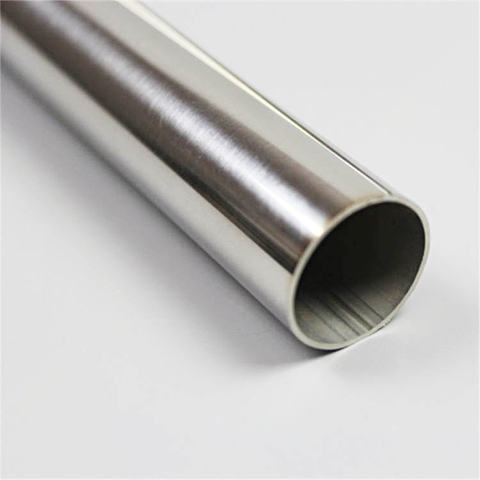

Introduction of Zggdmetal 6082 t6 aluminum tube

6082-T6 aluminum tube is a medium-to-high strength aluminum-magnesium-silicon alloy, offering excellent corrosion resistance, weldability, and machinability. Heat-treated to the T6 temper, it delivers superior structural strength, making it ideal for bridges, cranes, truck frames, railway components, and engineering structures. It’s a preferred substitute for 6061 in many heavy-duty applications.

Advantages of Zggdmetal 6082 t6 aluminum tube pipe

• High strength in T6 temper
• Excellent weldability and machinability
• Outstanding corrosion resistance
• High fatigue strength, ideal for load-bearing
• Stable performance after heat treatment

Specifications of Zggdmetal 6082 t6 aluminum pipe tube

Grade	6082
Temper	T5/T6
Type	Welded pipe / Seamless pipe
Outer diameter	10 mm – 250 mm
Wall thickness	1.0 mm – 20 mm
Length	1M~6M, support customized cutting
Surface treatment	Anodizing, sandblasting, brushing, polishing
Standard	ASTM,GB,EN,JIS

Chemical Composition of Zggdmetal 6082 t6 aluminum tube pipe

Fe	≤ 0.5%
Si	0.7~1.3%
Mn	0.4~1 %
Cr	≤0.25%
Cu	≤0.1%
Ti	≤0.1%
Zn	≤ 0.2%
Mg	0.6~1.2%
other	Others 0.5% / Others total 0.15%
AL	Balance

Mechanical Properties of Zggdmetal 6082 t6 aluminum pipe

Tensile Strength	≥205MPa
Yield Strength	≥ 110MPa
Elongation	≥ 14%

Applications of Zggdmetal 6082 t6 aluminum pipe

• Engineering structural parts (brackets, frames, support beams)
• Commercial vehicle frames, chassis systems
• Railway car body and structural connection pipes
• Building curtain walls, door and window frames
• Crane, robotic arms, handling equipment structural pipes

Why choose Zggdmetal ?

1. Customized outer diameter / wall thickness / length
2. Material report (third-party certification of EN and ASTM standards can be provided)
3. Support secondary processing such as cutting, drilling, welding, etc.
4. Export packaging standards (moisture-proof + pallet reinforcement)
5. Engineering supporting suggestions and drawing selection services
