5083 aluminum pipe for Marine & Pressure Applications

What is 5083 aluminum tube?

5083 aluminum tube is a high-magnesium aluminum alloy product that belongs to the Al-Mg series. As a non-heat-treatable alloy, 5083 delivers outstanding strength through cold working rather than thermal processing. Its chemical composition includes 4.00–4.90% magnesium as the primary alloying element, which gives it excellent corrosion resistance—especially in marine environments—and superb weldability.This alloy performs differently depending on its temper. In a semi-cold-worked (H116/H321) condition, it maintains good formability and plasticity. However, in fully cold-worked states, its ductility may decrease while strength increases.5083 aluminum tubing offers high strength, corrosion resistance, and ease of welding, making it ideal for structural applications requiring durability and reliability in harsh conditions. Common applicable standards for 5083 aluminum tube include ASME B36.10M / B36.19M in the United States and EN AW‑AlMg4.5Mn0.7 (corresponding to EN 573 and EN 755 series) in Europe. To view applicable standards, please refer to the specific 5083 aluminum tube standard table.

ZGGDMETAL 5083 Aluminum Alloy Tube Specifications

Alloy	5083
Temper	O、H111、H112、H32
Equivalent Name	AlMg4.5Mn0.7、GM41、UNS A95083
OD	NPS 1/8″ to 12″（ 5mm – 325 mm）
WT	SCH5、SCH10、SCH40、SCH80、SCH160  OD: 0.065″–0.906″（ 1.65mm – 23 mm）
Length	Standard length is 1-6m, and the length can be customized as required, up to 6m or more

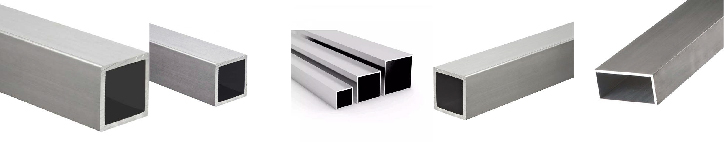

Shape	Round , Square , Rectangle
Surface Finish	Mill finish, anodizing, powder coating, electrophoretic coating, fluorocarbon spraying, etc.
Product Process	extrusion、seamless、ERW、
Standard	ASME B36.10M / B36.19M、ASTM B211/B241、EN AW‑AlMg4.5Mn0.7、GB/T
Payment Methods	T/T、L/C、D/P、
Packaging	Wooden pallets, strapping, plastic film protection, wooden boxes, steel frame fixing
Applications	Shipbuilding, offshore platforms, liquid containers and pressure vessels, automotive parts, aerospace welding structures, cryogenic structures, etc.

👉 If the standard sizes listed above do not meet your requirements, you can contact us directly for custom 5083 alu pipe specifications. Quick quote

ZGGDMETAL 5083 O Extruded round tube Stock Size

Alloy	Temper	OD	WT
5083‑O	O / H111 / H112	2″ (2.375″)	0.065″ (Sch 5)~0.344″ (Sch 160)
5083‑O	O / H111 / H112	3/8″ (0.675″)	0.126″ (Sch 80)
5083‑O	O / H111 / H112	½″ (0.84″)	0.065″~0.188″（Sch 5–Sch 160）
5083‑O	O / H111 / H112	¾″ (1.05″)	0.065″~0.219″（Sch 5–Sch 160）
5083‑O	O / H111 / H112	1″ (1.315″)	0.065″~0.250″
5083‑O	O / H111 / H112	1¼″ (1.66″)	0.065″~0.250″
5083‑O	O / H111 / H112	1½″ (1.90″)	0.065″~0.281″
5083‑O	O / H111 / H112	2½″ (2.875″)	0.083″~0.375″
5083‑O	O / H111 / H112	3″‐12″ (3.5″–12.75″)	Various Sch series (Sch5–Sch160) and wall thicknesses



ZGGDMETAL 5086 Seamless Round Tube Stock Size

Alloy	Temper	OD	WT
5086‑H32	H32	1.05″ / 1.32″ / 1.66″ / 1.90″…	0.13″–0.22″（Sch 40 / Sch 80）
5086‑H32	H32	2.38″	0.15″（Sch 40）or 0.34″（Sch 160）
5086‑H32	H32	2.88″ / 3.50″ / 4.00″ / 4.50″	0.20″–0.34″
5086‑H32	H32	5.57″	0.26″（Sch 40) to 0.38″（Sch 80）
5086‑H32	H32	6.63″	0.28″ / 0.43″（Sch 40 / Sch 80）
5086‑H32	H32	8.63″	0.32″ / 0.50″（Sch 40 / Sch 80）
5086‑H32	H32	10.75″ / 12.75″	0.37″–0.69″（Sch 40/80）
5086‑H111	H111	1″‑8″（NPS 1‑8）	Sch 40 / Sch 80 Standard wall thickness



Chemical Composition of ZGGDMETAL 5083 Aluminum Tube

Fe	≤ 0.4%
Si	≤ 0.4%
Mn	0.4~1.0%
Cr	0.05%~0.25%
Cu	≤0.1%
Zn	≤ 0.25%
other	Others 0.5% / Others total 0.15%
AL	Balance

Mechanical Properties of ZGGDMETAL 5083 Aluminum Tube

Tensile Strength	≥ 110~136MPa
Yield Strength	≥ 110MPa
Elongation	≥ 20%

5083 Aluminum Alloy Tube Applicable Standards

	STANDARD
USA	ASTM B210 / ASME B210
	ASTM B221 / ASME B221
	ASTM B241 / ASME B241 (SB241)
	ASTM B429 / AMS QQ‑A‑200/8 / WWW‑T‑700/5
Europe	EN AW‑AlMg4.5Mn0.7 (EN 573 / EN 755 系列)
UNS	UNS A95083



Advantages of ZGGDMETAL 5083 Aluminum Tube

1. Outstanding resistance to seawater & salt spray
2. Excellent weldability(TIG/MIG)
3. High strength, ideal for load-bearing structures
4. Superior fatigue resistance
5. High pressure and crack resistance

Applications of ZGGDMETAL 5083 Aluminum Tube

• Marine structures (hull frames, decks, ship pipelines)

• Military components (armored support, missile shells)

• Pressure tanks and containers (oil/gas/cryogenic systems)

• Offshore platforms and coastal structures

• Heavy-duty trailers and transportation frameworks

Why choose ZGGDMETAL as your wholesale aluminum tube supplier?

With its consistent product quality and trustworthy service system, ZGGDMETAL has established itself as a trusted aluminum tube supplier in China, earning a positive reputation among customers worldwide.

• Equipped with advanced aluminum tube extrusion equipment and an experienced technical team, we can help you effectively reduce procurement costs while ensuring product performance and consistency—saving up to 10% of your project budget.
• All aluminum tube orders are produced within 7 business days of confirmation, and specification sheets, data sheets, MSDS, and material test reports compliant with EN and ASTM standards are provided.
• Our export packaging utilizes standard pallets and moisture-proof and scratch-resistant protective film to ensure safe and secure delivery.
• All standard sizes are in stock. To avoid misunderstandings due to stock fluctuations, please confirm stock availability with us before placing an order.
• We also offer precision CNC machining services, including cutting, welding, and surface treatment, to meet your personalized customization needs.
