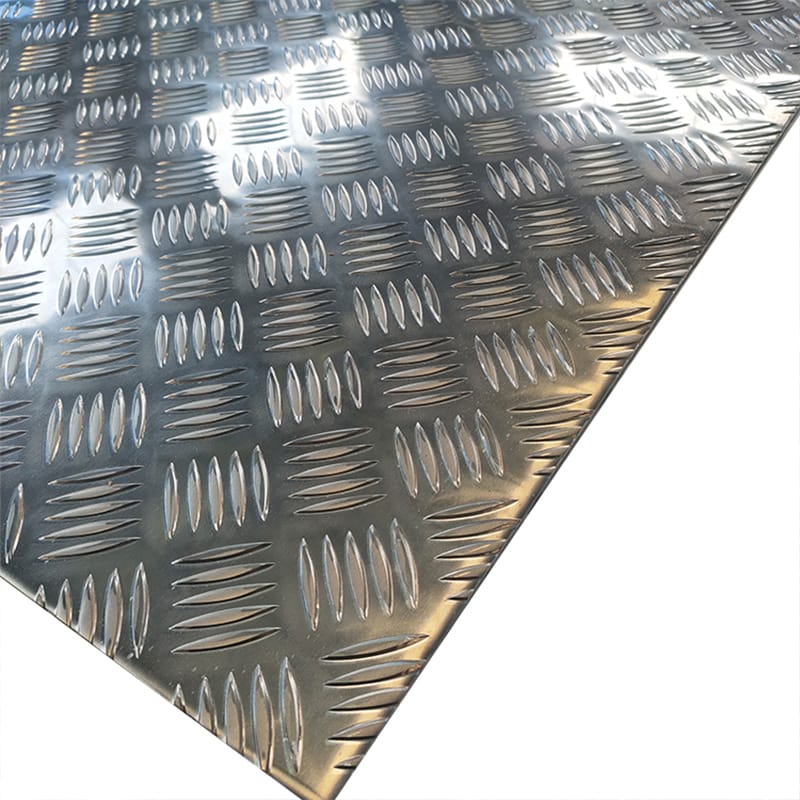

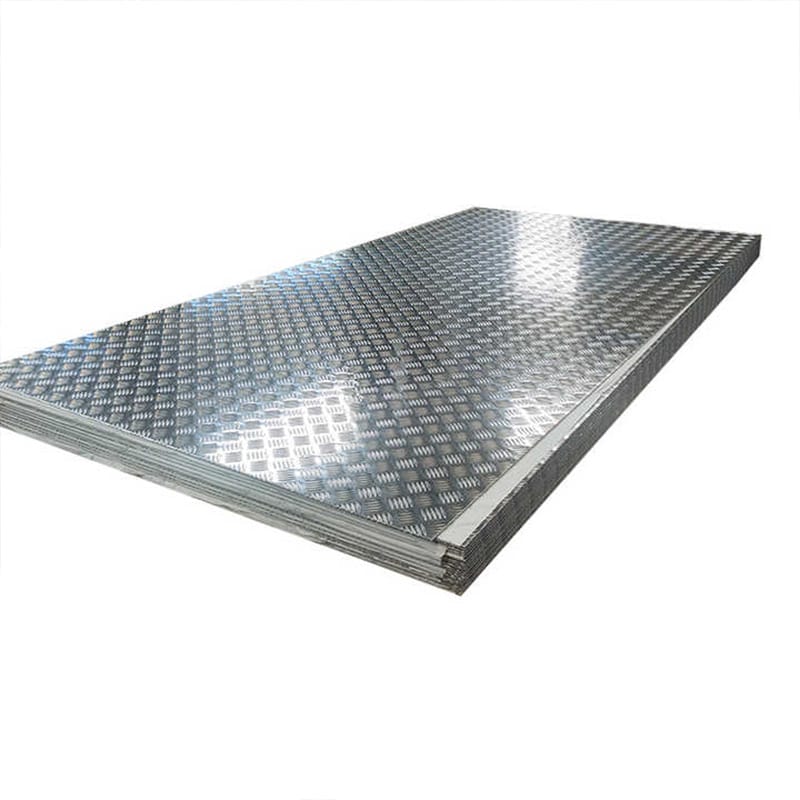

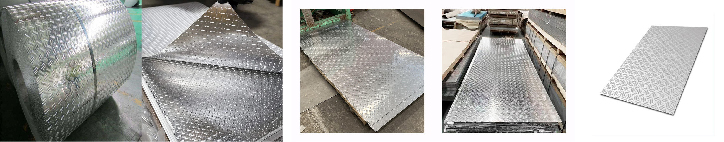

5052 Aluminum Checkered Plate is a high-quality tread plate made from 5052 aluminum alloy, well-known for its excellent corrosion resistance, lightweight, and durability. With a raised pattern such as diamond, five-bar, or pointer design, it provides outstanding anti-slip performance while enhancing the decorative appearance of the surface. This makes it an ideal material for flooring, stairs, truck beds, ship decks, and architectural applications where safety and aesthetics are equally important.
| Alloy | 5052 |
| Temper | O, H22, H32, H34 |
| Thickness | 1.5 mm – 6.0 mm (common: 2.0 / 3.0 / 4.0 / 5.0 mm) |
| Width | 1000 mm – 1500 mm (standard: 1000 / 1220 / 1250 / 1500 mm) |
| Length | 2000 mm – 6000 mm (custom sizes available) |
| Surface Finish | Mill Finish, Anodized, Polished, Color Coated (PE / PVDF) |

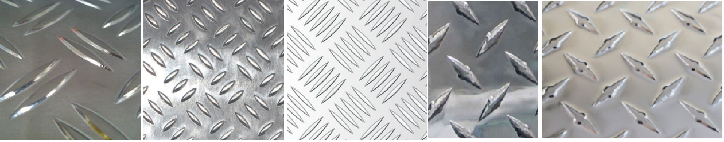

| Pattern Type | Diamond, Five-bar, Pointer, Two-bar |
| Standards | ASTM B209, EN 485, GB/T 3880, JIS H4000 |
| Applications | Flooring, Stairs, Truck Beds, Ship Decks, Ramps, Decorative Panels, Architecture |
| Alloy | Temper | Thickness (mm) | Width (mm) | Length (mm) | Pattern Type | Surface Finish |
|---|---|---|---|---|---|---|
| 5052 | H32 | 2.0 | 1220 | 2440 | Five-bar | Mill Finish |
| 5052 | H32 | 3.0 | 1250 | 2500 | Diamond | Mill Finish |
| 5052 | H34 | 4.0 | 1220 | 3000 | Five-bar | Mill Finish |
| 5052 | H32 | 4.5 | 1500 | 3000 | Diamond | Mill Finish |
| 5052 | H34 | 5.0 | 1250 | 2500 | Five-bar | Anodized |
| 5052 | H32 | 6.0 | 1500 | 3000 | Diamond | Polished |
| 5052 | H22 | 2.5 | 1000 | 2000 | Pointer | Mill Finish |
| 5052 | H32 | 3.0 | 1500 | 6000 | Five-bar | Mill Finish |
| Property | Value (Typical) | Condition / Note |
|---|---|---|
| Tensile Strength (σb) | 210 – 260 MPa | H32 / H34 |
| Yield Strength (σ0.2) | 130 – 180 MPa | H32 / H34 |
| Elongation (A50) | 7 – 12 % | H32 / H34 |
| Brinell Hardness (HB) | 60 – 70 | H32 |
| Fatigue Strength (10⁸ cycles) | ~115 MPa | Typical for 5052 |
| Modulus of Elasticity (E) | 70 GPa | All tempers |
| Poisson’s Ratio | 0.33 | All tempers |
| Shear Strength | ~138 MPa | Typical |
| Density | 2.68 g/cm³ | Alloy constant |
| Thermal Conductivity | 138 W/m·K | At 25 °C |
| Electrical Conductivity | ~35 % IACS | Typical |
| Melting Range | 607 – 649 °C | Alloy constant |
What are the characteristics of 5052 Aluminum checkered plate?
At ZGGDMETAL, we understand that every project has unique requirements. That’s why we offer a wide range of surface treatment options for 5052 Aluminum Checkered Plate to meet both functional and decorative needs. Our finishes include mill finish for standard applications, anodizing for enhanced corrosion resistance and aesthetics, polishing for a premium look, and PE/PVDF color coating for long-lasting architectural solutions. With multiple patterns and surface treatments available, we ensure our products not only perform exceptionally but also match your customized design preferences. ZGGDMETAL is committed to delivering tailored solutions that help our clients achieve the perfect balance of durability, safety, and style.
