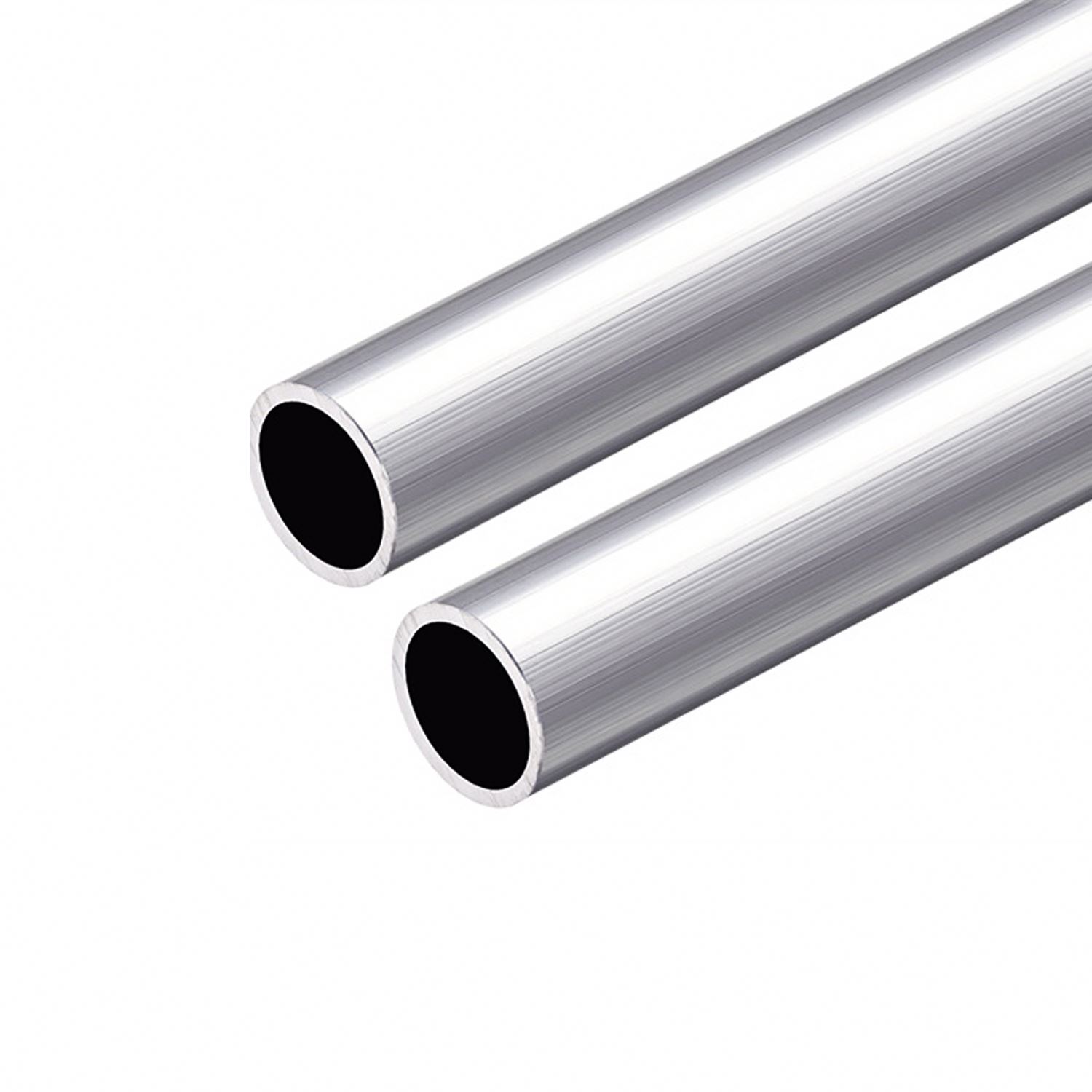

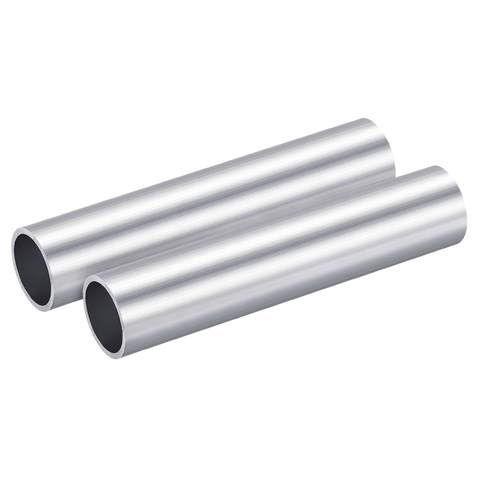

3003 Aluminum round tube

Introduction of Zggdmetal 3003 aluminum tube

3003 aluminum tube is an aluminum-manganese (AL-Mn) series rust-proof alloy tube. Among many aluminum alloys, it is widely used in many industrial fields for its good formability, excellent corrosion resistance and excellent welding performance. Its strength is slightly higher than that of industrial pure aluminum (1000 series), but it cannot be strengthened by heat treatment, and mainly relies on cold working to improve mechanical properties. In the annealed state, 3003 aluminum tube shows extremely high plasticity; it has good formability in the cold working strengthening state; its corrosion resistance makes it particularly suitable for use in pipeline systems, decorative components, heat exchangers and liquid transportation equipment.

Advantages of Zggdmetal 3003 aluminum tube pipe

• Suitable for humid or slightly corrosive environments
• Can be bent, stretched, stamped and other deep processing
• Suitable for various welding methods (TIG, MIG, etc.)
• Excellent forming performance in annealing state
• Suitable for fluid transportation systems and heat pipe applications

Specifications of Zggdmetal 3003 aluminum pipe tube

Grade	3003
Temper	O/H14/H14/H18
Type	Welded pipe / Seamless pipe/Extruded aluminum tube
Outer diameter	6 mm – 120 mm
Wall thickness range	0.8 mm – 6 mm
Length	1M~6M, support customized cutting
Surface treatment	Anodizing, sandblasting, brushing, polishing
Standard	GB/T 3191, ASTM B221, EN 755



Chemical Composition of Zggdmetal 3003 aluminum tube pipe

Fe	≤ 0.7%
Si	≤ 0.6%
Mn	1~1.5%
Cu	0.05~0.2%
Zn	≤ 0.1%
other	Others 0.5% / Others total 0.15%
AL	Balance

Mechanical Properties of Zggdmetal 3003 aluminum pipe

Tensile Strength	≥ 142~178MPa
Yield Strength	≥ 115MPa
Elongation	≥ 7%



3003 Aluminum Alloy – International Standards Comparison Table

Applications of Zggdmetal 3003 aluminum pipe

• Condenser, radiator, pipeline transportation system
• Curtain wall support, sun room frame, railing structure
• Water dispenser, refrigerator condensing coil, beverage storage and transportation pipeline
• Rice cooker inner tank frame, washing machine accessories
• Lightweight structural components, rust-proof shell

Why choose Zggdmetal ?

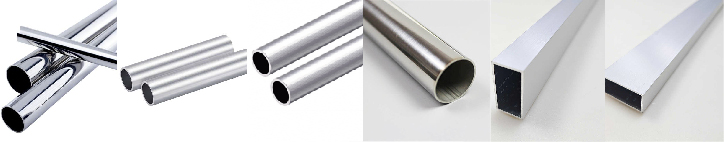

1. A variety of tube types are available: round tube, oval tube, square tube
2. Provide cutting, punching, bending, welding and other processing services
3. Provide material reports, RoHS certification, SGS testing and other documents
4. Multi-language business support, professional export packaging, global supply
