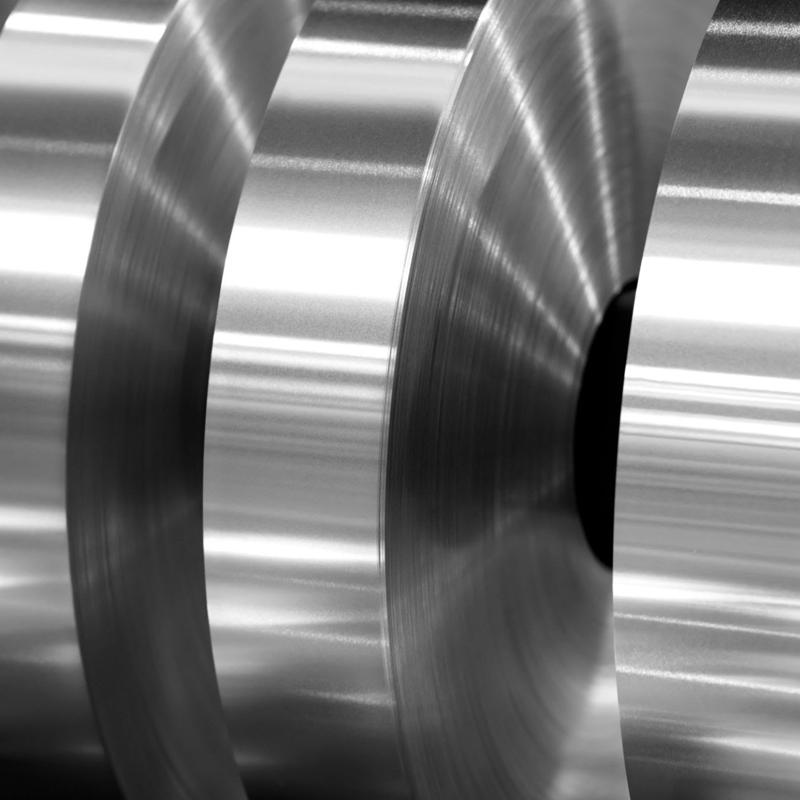

The 1060 aluminum strip belongs to the 1000 series, containing over 99.6% pure aluminum. Renowned for its excellent electrical and thermal conductivity, superior corrosion resistance, and outstanding formability, it is widely used across various industries. Its low strength and high ductility make it ideal for applications requiring deep drawing or complex shaping.
| Alloy | 1060 |
| Temper | O, H12, H14, H16, H18 |
| Thickness | 0.1 – 3.5 mm |
| Width | 10 – 2650 mm |
| Length | Customized (common: 1000, 2000, 5000 mm) |
| Surface Finish | Mill Finish, Anodized, Brushed, Mirror-polished, Coated (PVDF) |
| Shape | Strip |
| Standard | ASTM B209, GB/T3880 |
| Applications | Roll or cut to length, packed with protective film or paper; used for transformer windings, vial seals, electronic components, decorative panels, architectural materials |
| Thickness (mm) | Width (mm) | Length (mm) | Surface Finish | Temper |
|---|---|---|---|---|
| 0.1 | 10–100 | 1000–2000 | Mill Finish | O |
| 0.15 | 20–100 | 1000–2000 | Mill Finish | H14 |
| 0.2 | 10–200 | 1000–2000 | Mill Finish | H16 |
| 0.3 | 10–200 | 1000–2000 | Mill Finish | H18 |
| 0.4 | 10–200 | 1000–2000 | Mill Finish | H18 |
| 0.5 | 10–200 | 1000–2000 | Mill Finish | H18 |
| 0.2 | 20–50 | 1000–2000 | Anodized | O |
| 0.3 | 20–50 | 1000–2000 | Brushed | H14 |
| 0.2 | 10–50 | 1000–2000 | Mirror-polished | H16 |
👉If you need custom product specifications, get custom information immediately. Quick Quote
| Property | O (Annealed) | H12 | H14 | H16 | H18 |
|---|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | 70–110 | 115–145 | 125–155 | 135–165 | 145–170 |
| Yield Strength (MPa) | 35–60 | 75–95 | 85–105 | 95–115 | 105–125 |
| Elongation (%) | 25–35 | 12–20 | 10–18 | 8–15 | 6–12 |
| Hardness (HB) | 20–30 | 35–50 | 40–55 | 45–60 | 50–65 |
| Density (g/cm³) | 2.70 | 2.70 | 2.70 | 2.70 | 2.70 |
| Electrical Conductivity (% IACS) | 61–63 | 61–63 | 61–63 | 61–63 | 61–63 |
High Purity: Contains over 99.6% aluminum, providing excellent corrosion resistance and chemical stability.
Excellent Conductivity: Superior electrical and thermal conductivity, ideal for transformer windings and electronic applications.
Good Formability: Soft and ductile, especially in O temper, allowing deep drawing, bending, and complex shaping.
Varied Tempers: Available in O (annealed) for maximum softness, and H12–H18 (cold-worked) for higher strength.
Surface Finish Options: Mill finish, anodized, brushed, mirror-polished, or coated (e.g., PVDF) for enhanced durability and aesthetic appeal.
Lightweight: Density of 2.70 g/cm³ makes it easy to handle and suitable for applications where weight is critical.
Ease of Processing: Can be welded, cut, or formed with conventional metalworking methods.
Versatile Applications: Suitable for electrical, decorative, packaging, automotive, and architectural uses.
In summary, 1060 aluminum strip combines high purity, excellent conductivity, corrosion resistance, and versatile formability, making it a reliable choice for industrial and decorative purposes.
1060 Aluminum Strip is widely used across various industries due to its high purity, excellent corrosion resistance, and good formability. Common applications include:
Transformer Windings: Its excellent electrical conductivity and ductility make it ideal for dry-type and oil-type transformer windings.
Vial Seals and Packaging: High-purity 1060 aluminum provides reliable sealing for pharmaceutical bottles and other packaging applications.
Electronic Components: Used in heat sinks, conductive connections, and other electronic parts requiring good thermal and electrical performance.
Decorative Panels and Architectural Materials: Its surface can be finished as mill finish, anodized, brushed, or mirror-polished, making it suitable for building facades, signage, and interior decorations.
Heat Exchangers and Automotive Parts: Lightweight and corrosion-resistant, it is suitable for thermal management components in vehicles and machinery.
Overall, 1060 aluminum strip is chosen for applications where high ductility, corrosion resistance, and reliable conductivity are essential.
